BESS OEM & ODM 12V/24V Lithium LIFEPO4 Battery pack, application: Network-independent solar-eating, motorhome/camper performance, marine/yacht, camping power supply, night-tablage, solar street lantern.

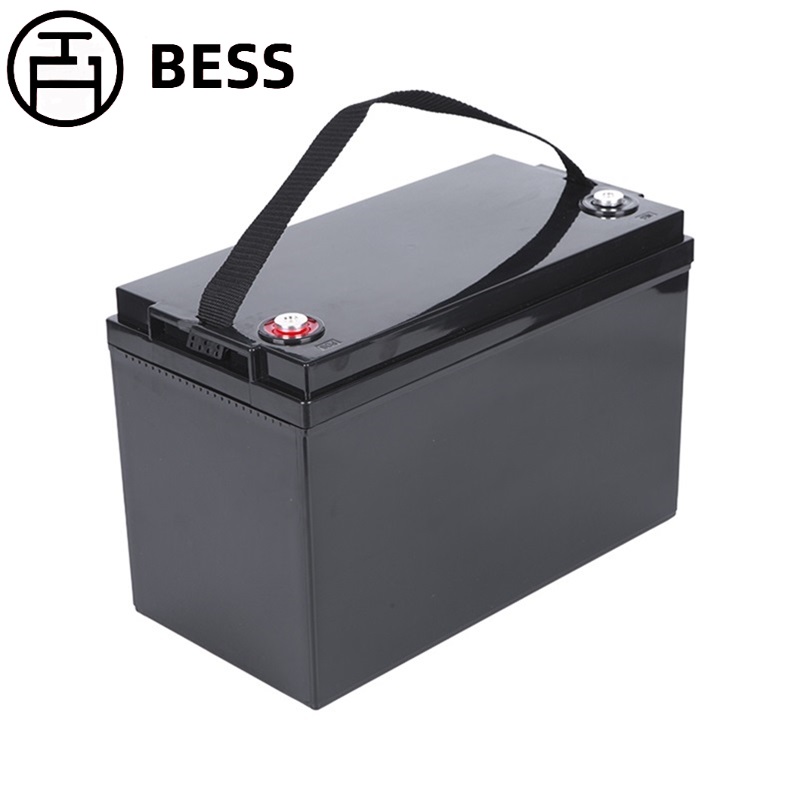

Kito 12V/24V deep cycle lithium lifepo4 battery pack OEM & ODM
Our 12 V-24 V-lifepo4 lithium batteries can be used as a drop-in replacement for cycle-resistant lead-acid batteries and are compatible with most modern inverter charging devices that are used in network-independent and hybrid energy storage systems. The 48 V battery energy storage system can adapt the capacities to your needs for solar applications.
It was used in a variety of applications, including motorhomes, sightseeing cars, boats, scooters, tricycles, emergency lighting and safety monitoring, etc.
Characteristics:
high security
Super flexible
good reliability
long lifetime
Good performance at high/low temperatures.
| Model | BESS-1207FP | BESS-1212FP | BESS-1250FP | BESS-12100FP | BESS-12200FP |
|---|---|---|---|---|---|
| Nominal voltage | 12.8v | 12.8v | 12.8v | 12.8v | 12.8v |
| Nominal capacity at 25 ℃ | 7Ah | 12Ah | 50Ah | 100Ah | 200Ah |
| Name energy @25 ℃ | 89.6Wh | 153.6Wh | 640Wh | 1280Wh | 2560Wh |
| Type of the battery cell | cylinder | cylinder | Prismatic 50Ah | Prismatic 100Ah | Prismatic 200Ah |
| Configuration (*s*p) | 4S1P | 4S2P | 4S1P | 4S1P | 4S2P |
| Max. Continuous charging current at 25 ℃ | 7a | 12a | 50a | 100a | 200a |
| Max. Impulse charging current @ 25 ° C, 10s | 9a | 15a | 60a | 120a | 240a |
| Max. Continuous charging current at 25 ℃ | 7a | 12a | 50a | 100a | 200a |
| Max. Pulse charging current at 25 ° C, 10 s | 9a | 15a | 60a | 120a | 240a |
| DC resistance | ≤10 mΩ | ≤10 mΩ | ≤10 mΩ | ≤10 mΩ | ≤10 mΩ |
| Fully charged voltage | 14.6v | 14.6v | 14.6v | 14.6v | 14.6v |
| Discharge | 10V | 10V | 10V | 10V | 10V |
| Operating temperature range | Charge: 0˚c ~ 55˚c | Discharge: -20˚c ~ 60˚c | Storage: -20˚c ~ 45˚c | ||
| Moist (not condensing) | Max. 95% | Max. 95% | Max. 95% | Max. 95% | Max. 95% |
| Dimensions (mm) | 152*65*94mm | 152*99.5*100mm | 229*138*208mm | 326*171*215mm | 522*240*218mm |
| Weight (KG) | 1.1kg | 1.7kg | 7kg | 13.5kg | 25kg |
| Terminal | F1 Terminal | F1 Terminal | Screw clamp | Screw clamp | Screw clamp |
| Cover seal type | Screw/gel sealing optional | ||||
| Waterproof | IP65 | ||||
| Cycle live | 100 % DOD cycles at 25 ° C, 1c/1c:> 2000 times 80 % DOD cycles at 25 ° C, 1c/1c:> 3000 times 50 % DOD cycles at 25 ° C, 1c/1c:> 5000 times | ||||
| Service life | 5-10 years | ||||
| guarantee | 3 years | ||||
| LCD screen display | Optional (voltage V, display performance %) | ||||
| Bluetooth | Optional (Bluetooth with a mobile app) | ||||
| Rows and parallel function | Available for series and parallel circuits, around 24 V, 36 V, 48 V |
