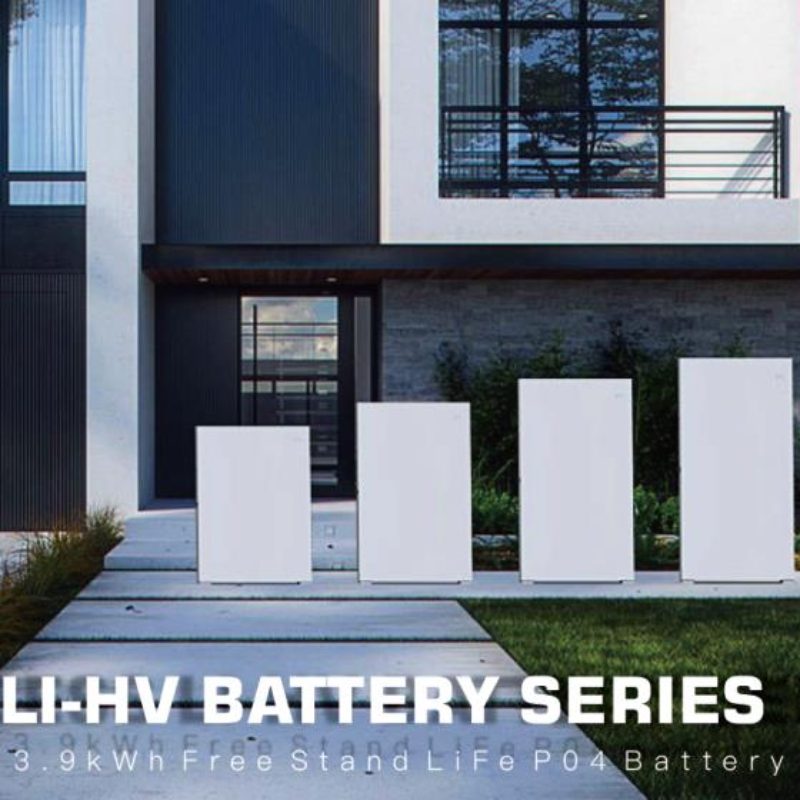

BESS 510V 10 kWh 20 kWh battery energy storage for home Backup LIFEP04 HV wall mount 4 parallel
Our free-standing lithium-ion battery systems have become popular due to their high efficiency, compact size, their low weight, and their scalability. Lower voltage modules (48 V) are designed for applications in the living area and network-independent installations. High-voltage modules are very flexible in design and popular with our customers.
It has several functions, including remote monitoring, software upgrades, modular design, simple furnishings, and one of the most cost-effective options for storing solar energy.
10 kWh capacity is very popular and you can choose more capacity from our scalable and flexible high-voltage module battery systems.
Characteristics:
• RS485/CAN
• Installation: free-standing on the floor
• tailored to different global top inverter stamps
• High-security standard of the LFP (LIFEP04) cell
• Long-lived battery design supported by efficient compensation technology
• Extended BMS protection functions
| Modular type | BESS-H27 | BESS-H39 |
|---|---|---|
| Total energy [kWh] | 2.7 | 3.9 |
| Usable energy [kWh] | 2.43 | 3.51 |
| Nominal voltage [V] | 102 | 102 |
| Operating voltage area [V] | 80-116.8 | 80-116.8 |
| Nominal capacity [ah] | 27 | 39 |
| Max. Charging/discharge flow [A] | 30 | 30 |
| Discharge depth [%] | 90 | 90 |
| Cycle life [90 % DOD] | 6000 cycles/10 years | 6000 cycles/10 years |
| Data communication | Can/rs485 | Can/rs485 |
| Nominal temperature | 0 C to 45 C | 0 C to 45 C |
| Heating function temperature | -20 C to 45 C | -20 C to 45 C |
| Fan function temperature | 0 C to 55 C | 0 C to 55 C |
| humidity | 4 % to 100 % (condensing) | 4 % to 100 % (condensing) |
| Height | Under 2000 m | Under 2000 m |
| Protection type of the housing | IP65/IP20 | IP65/IP20 |
| certificate | Ul1973/IEC62619/UN38.3 | Ul1973/IEC62619/UN38.3 |
| Max. Number of parallels or series | Max5 module series Max. 4 sets in parallel | Max5 module series Max. 4 sets in parallel |
| Installation mode | Free stand | Free stand |
| Dimensions [B*H*TMM] | 570*235*240mm | 610*320*190mm |
| Weight [kg] | 30 | 40 |
