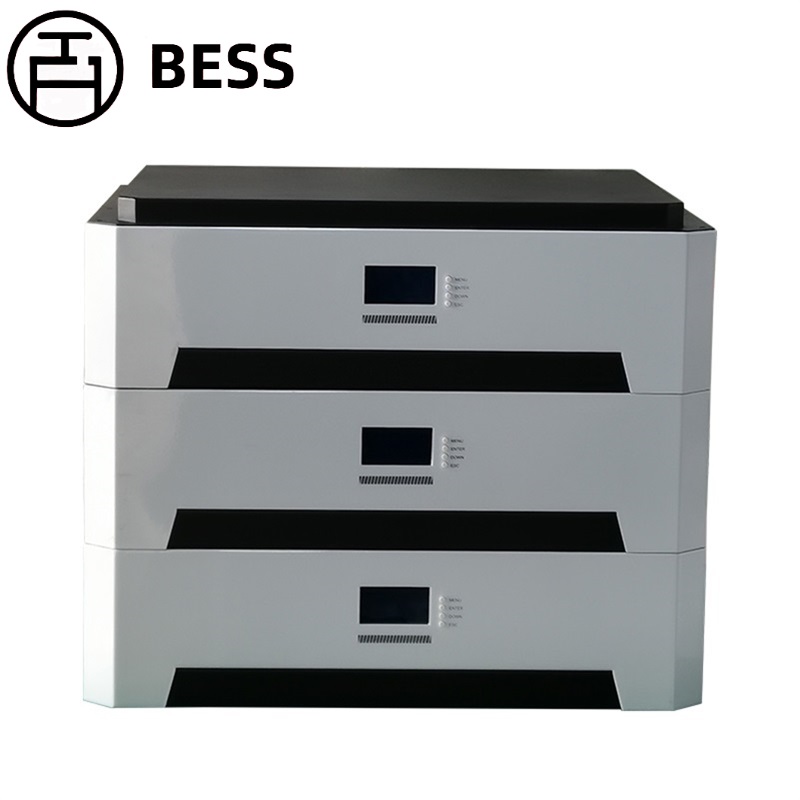

BESS 5kWh lithium lifepo4 stackable independent solar Battery Energy Storage System for home.
The stackable storage system is a modular 48 V tower battery system that is designed for different energy storage requirements. Unity capacity 2.56 kWh or 5 kWh base, up to 10 modular batteries can be switched in parallel to provide up to 40.96 kWh of usable storage capacity.
The characteristics include remote monitoring, software upgrades, modular design, and simple furnishings and deliver a high-quality, functional energy storage system with optimal size for your home or your company.
Characteristics:
• RS485/CAN
• Installation: stacked standing
• tailored to different global top inverter stamps
• High-security standard of the LFP (LIFEP04) cell
• Long-lived battery design supported by efficient compensation technology
• Extended BMS protection functions
The stacked solar battery storage system can be used to manage higher loads in larger network-independent and mesh-coupled energy storage applications
| Model | BESS-P5A |
|---|---|
| Battery type | Lifepo4 |
| energy | 5120wh |
| capacity | 100Ah |
| Design voltage | 51.2V |
| Working voltage area | 40-58.4V |
| Max. Charging current | 100a |
| Max. Discharge current | 100a |
| Standard charging current | 50a |
| Standard entertainment current | 100a |
| Dod | 100% |
| Max. Parallel quantity | 16 |
| Designed lifespan | 6000 cycles |
| operating temperatur | Charge 0-60 discharge -10-60 |
| Moisture | 5-95% |
| Nominal operating height | 3000 m |
| IP rating | IP65 |
| Installation method | Stacking |
| communication | RS485/CAN/RS232 |
| Certification | MSDS UN38.3 |
| Net weight | 46.3 kg |
| Dimensions (L*B*H) | 635*400*192 mm |
