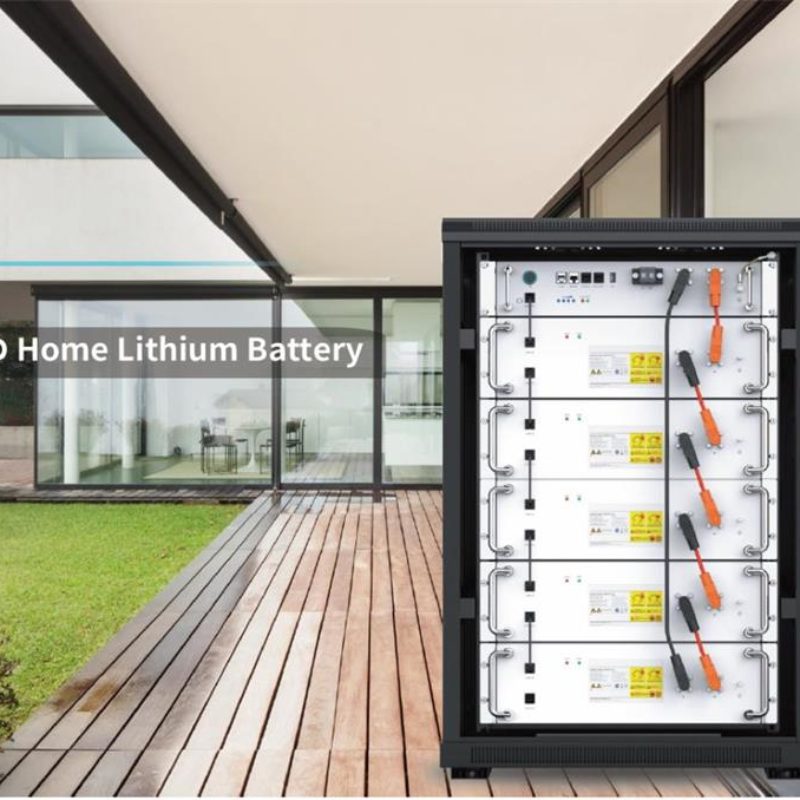

BESS HV 510V 27AH 13.5kWh Power battery energy storage for home Backup Rack Mount
Simple 3U rack battery packs, built-in LFP battery with a high-security class, support a continuous discharge with a high rate and a long service life. These modular, scalable rack-mount batteries are designed for private and commercial applications, both network-bound and independent of the network. For additional memory requirements, you can easily set up connections for several units with up to 32 parallel units.
Safe, flexible, high compatibility and scalability, cabinet or holder installations are available.
Characteristics:
• RS485/CAN
• Installation: frame -assembled
• tailored to different global top inverter stamps
• High-security standard of the LFP (LIFEP04) cell
• Long-lived battery design supported by efficient compensation technology
• Extended BMS protection functions
The rack or cabinet solar battery systems can be used for mesh-coupled solar backup systems for households, network-independent power supply, telecommunications, solar USV, and backup systems.
| Modular type | BESS-HV27U |
|---|---|
| Total energy [kWh] | 2.7 |
| Usable energy [kWh] | 2.43 |
| Nominal voltage [V] | 102 |
| Operating voltage area [V] | 80-116.8 |
| Nominal capacity [ah] | 27 |
| Max. Charging/discharge flow [A] | 30 |
| Discharge depth [%] | 90 |
| Cycle life [90 % DOD] | 6000 cycles/10 years |
| Data communication | Can/rs485 |
| Nominal temperature | 0 C to 45 C |
| Heating function temperature | -20 C to 45 C |
| Fan function temperature | 0 C to 55 C |
| humidity | 4 % to 100 % (condensing) |
| Height | Under 2000 m |
| Protection type of the housing | IP20 |
| certificate | Ul1973/IEC62619/UN38.3 |
| Max. Number of parallels or series | Max5 module series Max. 4 sets in parallel |
| Installation mode | Free stand |
| Master Control Dimensions [B*H*TMM] | 430*400*88mm |
| Dimensions of the battery module [B*H*TMM] | 430*600*130mm |
| Main tax weight [KG] | 10 |
| Weight of the battery module [KG] | 35 |
