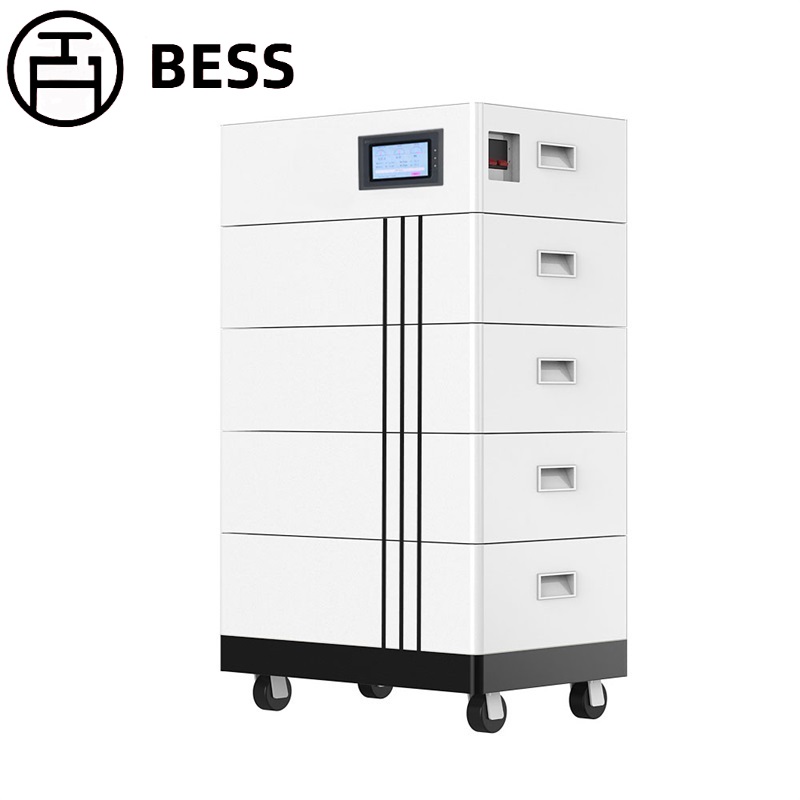

BESS HV 5KWH ground stack Module Solar battery storage system for home Backup
The stackable storage system is a modular 48 V tower battery system that is designed for different energy storage requirements. Unity capacity 2.56 kWh or 5 kWh base, up to 10 modular batteries can be switched in parallel to provide up to 40.96 kWh of usable storage capacity.
The characteristics include remote monitoring, software upgrades, modular design and simple furnishings and deliver a high-quality, functional energy storage system with optimal size for your home or your company.
Characteristics:
• RS485/CAN
• Installation: stacked standing
• tailored to different global top inverter stamps
• High security standard of the LFP (LIFEP04) cell
• Long -lived battery design supported by efficient compensation technology
• Extended BMS protection functions
The stacked solar battery storage system can be used to manage higher loads in larger network -independent and mesh -coupled energy storage applications.
| Model | BESS-BL |
|---|---|
| Battery energy | 4800WH 100Ah |
| Normal voltage | 48v |
| Operating voltage area | 40 ~ 54.7V |
| Depth of discharge | 90% |
| Standard charging/discharge current | 50a |
| Max. Charging/discharge current | 100a |
| Dimensions (W x D x H) | 574*395*134mm |
| Weight | 49kg |
| Scalability | 8 batteries in series |
| Installation | Floor stand |
| Loading temperature | 0 ~ 55 ° C |
| Discharge temperature | -10 ~ 60 ° C |
| IP rating | IP65 |
| Cell technology | Lifepo4, lithium iron phosphate |
| guarantee | 5 years |
| lifespan | 6000 cycles 10 years of service life |
| Moisture | 4 ~ 100 % (condensing) |
| Normal operating height | <2000m |
| communication | RS485, can |
| Advertisement | SOC status display, LED display |
| Certification | Ul1973, IEC62619, UN38.3 |
