Powerwall lithium-ion battery 7.6Kkwh systems have become popular due to their high efficiency, compact size, low weight, and scalability. Lower voltage modules (48 V) are designed for applications in the living area and network-independent installations.
It has several functions, including remote monitoring, software upgrades, modular design, simple furnishings, and one of the most cost-effective options for storing solar energy.
(Hybrid) systems with a smaller capacity of less than 20 kWh can opt for our intelligent, scalable Powerwall battery systems.
Characteristics:
• RS485/CAN
• Installation: wall assembly
• tailored to different global top inverter stamps
• High-security standard of the LFP (LIFEP04) cell
• Long-lived battery design supported by efficient compensation technology
• Extended BMS protection functions

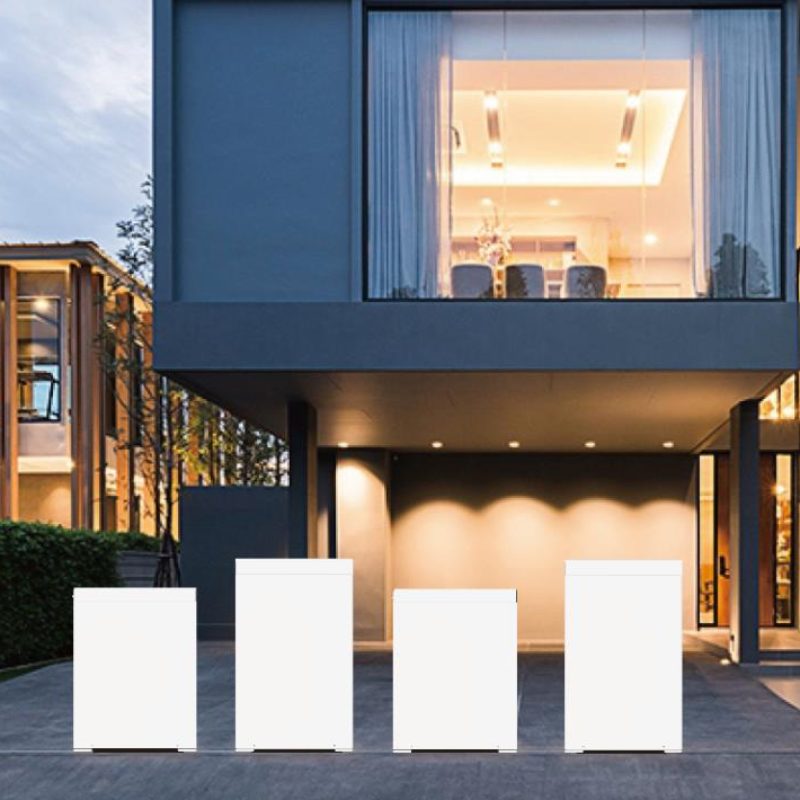

Wall-mounted battery systems with 5 kWh up to 10 kWh can be used to a large extent in home storage systems, living solutions, and solar storage backup systems.
| Modular type | BESS-LV103 | BESS-LV150 |
|---|---|---|
| Total energy [kWh] | 5.2 | 7.6 |
| Usable energy [kWh] | 4.6 | 6.8 |
| Nominal voltage [V] | 51.2 | 51.2 |
| Operating voltage area [V] | 40-58.4 | 40-58.4 |
| Nominal capacity [ah] | 103 | 150 |
| Max. Charging/discharge flow [A] | 100 | 120 |
| Discharge depth [%] | 90 | 90 |
| Cycle life [90 % DOD] | 6000 cycles/10 years | 6000 cycles/10 years |
| Data communication | Can/rs485 | Can/rs485 |
| Nominal temperature | 0 C to 45 C | 0 C to 45 C |
| Heating function temperature | -20 C to 45 C | -20 C to 45 C |
| Fan function temperature | 0 C to 55 C | 0 C to 55 C |
| humidity | 4 % to 100 % (condensing) | 4 % to 100 % (condensing) |
| Height | Under 2000 m | Under 2000 m |
| Protection type of the housing | IP65/IP20 | IP65/IP20 |
| certificate | Ul1973/IEC62619/UN38.3 | Ul1973/IEC62619/UN38.3 |
| Max. Number of parallels or series | Max20 modules in parallel | Max20 modules in parallel |
| Installation mode | Wall assembly | Wall assembly |
| Dimensions [B*H*TMM] | 518*710*150mm | 518*870*150mm |
| Weight [kg] | 45 | 62 |
