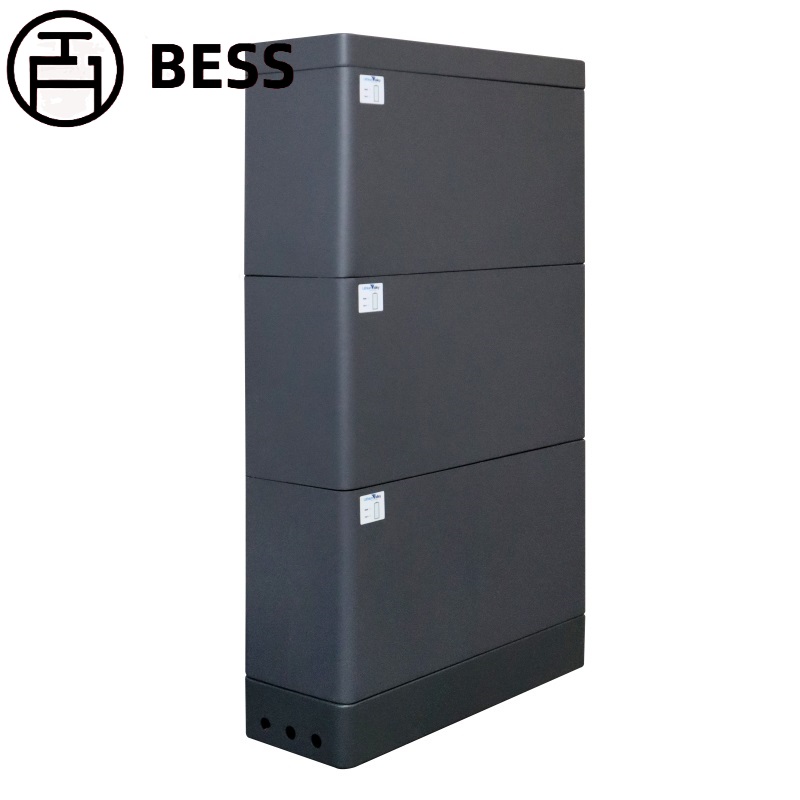

The stackable storage system is a modular 48 V tower battery system that is designed for different energy storage requirements. Unity capacity 2.56 kWh or 5 kWh base, up to 10 modular batteries can be switched in parallel to provide up to 40.96 kWh of usable storage capacity.
The characteristics include remote monitoring, software upgrades, modular design, and simple furnishings and deliver a high-quality, functional energy storage system with optimal size for your home or your company.
Characteristics:
• RS485/CAN
• Installation: stacked standing
• tailored to different global top inverter stamps
• High-security standard of the LFP (LIFEP04) cell
• Long-lived battery design supported by efficient compensation technology
• Extended BMS protection functions
The stacked solar battery storage system can be used to manage higher loads in larger network-independent and mesh-coupled energy storage applications.
| Model | 51.2V 100Ah | 51.2V 200AH | 51.2V 300AH | 51.2V 400AH | 51.2V 500AH | 51.2V 600AH |
|---|---|---|---|---|---|---|
| Number of layers | 1 layers | 2 layers | 3 layers | 4 layers | 5 layers | 6 layers |
| energy | 5.12kWh | 10.24kWh | 15.36kWh | 20.48kWh | 25.6kWh | 30.72kWh |
| Operating voltage | 43.2v ~ 56.16V | 43.2v ~ 56.16V | 43.2v ~ 56.16V | 43.2v ~ 56.16V | 43.2v ~ 56.16V | 43.2v ~ 56.16V |
| Dimensions (L*w*h) mm | 600*210*440 | 600*210*740 | 600*210*1040 | 600*210*1340 | 600*210*1640 | 600*210*1940 |
| Weight (KG) | 71 | 119 | 167 | 215 | 263 | 311 |
| Recommend charging current | 50a | 50a | 50a | 50a | 50a | 50a |
| Max. Permanent charging current | 100a | 100a | 100a | 100a | 100a | 100a |
| Max. Continuous discharge current | 100a | 100a | 100a | 100a | 100a | 100a |
| Topping charging current | 200a | 200a | 200a | 200a | 200a | 200a |
| LED display | The information of the battery, such as B. SoC, battery operating status | The information of the battery, such as B. SoC, battery operating status | The information of the battery, such as B. SoC, battery operating status | The information of the battery, such as B. SoC, battery operating status | The information of the battery, such as B. SoC, battery operating status | The information of the battery, such as B. SoC, battery operating status |
| communication | Supports RS485 / Can | Supports RS485 / Can | Supports RS485 / Can | Supports RS485 / Can | Supports RS485 / Can | Supports RS485 / Can |
| operating temperatur | -20 ℃ ℃ 55 ℃ | -20 ℃ ℃ 55 ℃ | -20 ℃ ℃ 55 ℃ | -20 ℃ ℃ 55 ℃ | -20 ℃ ℃ 55 ℃ | -20 ℃ ℃ 55 ℃ |
| Environment | Inside | Inside | Inside | Inside | Inside | Inside |
| Relative humidity | 5%～ 95% | 5%～ 95% | 5%～ 95% | 5%～ 95% | 5%～ 95% | 5%～ 95% |
| Cooling | Natural cooling | Natural cooling | Natural cooling | Natural cooling | Natural cooling | Natural cooling |
| Cell technology | Lithium iron phosphate (lifepo4) | Lithium iron phosphate (lifepo4) | Lithium iron phosphate (lifepo4) | Lithium iron phosphate (lifepo4) | Lithium iron phosphate (lifepo4) | Lithium iron phosphate (lifepo4) |
| Life cycle | 3500 times at 80 % DOD | 3500 times at 80 % DOD | 3500 times at 80 % DOD | 3500 times at 80 % DOD | 3500 times at 80 % DOD | 3500 times at 80 % DOD |
| module | 51.2v 100Ah, 5.12kWh | 51.2v 100Ah, 5.12kWh | 51.2v 100Ah, 5.12kWh | 51.2v 100Ah, 5.12kWh | 51.2v 100Ah, 5.12kWh | 51.2v 100Ah, 5.12kWh |
| Dimensions (L*B*H) | 600*210*300mm | 600*210*300mm | 600*210*300mm | 600*210*300mm | 600*210*300mm | 600*210*300mm |
| Weight of the battery module | 48kg | 48kg | 48kg | 48kg | 48kg | 48kg |
